Jainson – Cable Terminal Ends

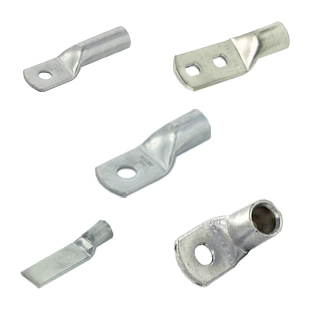

Jainson – Tubular Terminal Ends

Are the commonly used types of terminal ends. These tubular terminal ends, both for crimping & soldering are manufactured from soft drawn, pure, high conductivity copper tubes conforming to BS 1977. They are fully annealed to ensure qualities of electrical & mechanical strength & are also produced from Aluminum Tube as per IS 5082 (mainly used with power distribution cables)

TypeRange
  • Crimping Type
  • Copper Tubular
  • Terminal Ends
2.5-1000mm2
  • Crimping Type Long Barrel
  • Copper Tubular Terminal
  • Ends (Light & Heavy Duty)
2.5-1000mm2(L.D.)
2.5-1000mm2(H.D.)
  • Crimping Type Extended
  • Copper Tubular Terminal Ends
50-625mm2
  • Soldering Type
  • Tubular Cable Sockets
15-1000mm2
  • Compression Type
  • Aluminium Tubular
  • Terminal Ends
2.5-1000mm2
  • Aluminium Tubular
  • Long Barrel Sockets & XLPE Cable Sockets
2.5-1000mm2
25-1000mm2
  • Crimping Type Copper
  • Tubular Sockets 90o Bend
35-400mm2
  • Crimping Type Double
  • Hole Copper Tubular
  • Terminal Ends
35-630mm2
  • Crimping Type Copper
  • Tubular Terminal Ends
  • Heavy Duty (XLPE)
1.5-1000mm2

Jainson – Reducer Type Terminal Ends

Copper pin terminals or Reducer are produced to meet the needs of Cable entering Copper tunnel clamps such as fine gears, cut-out meter, Energy etc. They can be connected either by soldering or the crimping method & Brass for soldering & copper/ Aluminium for crimping.

TypeRange
  • Crimping Type Copper & Aluminium Reducer
  • Terminal Ends
2.5-400mm2
  • Aluminium Cable Socket (Central Palm)
70-120mm2

Jainson – N-line Connectors & Ferrules

They are manufacture from soft drawn bare copper tube as per BS-1977 & Aluminium as Per IS 5082 to obtain high electrical & mechanical strength. They are used for straight thought joints for joints of cable conductors.

TypeRange
  • Crimping Type Copper & Aluminium In-Line Connectors.
2.5-1000mm2
  • Crimping Type Copper Tubular end Sealing Ferrules
0.5-16mm2
  • Crimping Type Copper In-Line Connectors
1.5-1000mm2

Jainson – Bi-MetaIIic Cable Lugs

Bi-Metallic Cable Lugs are commonly use in electrical systems applications where a transition is required between different metals. They are used in power distribution, switchgear transformers, and various electrical connections where aluminum conductors need to be joined with copper.

TypeRange
  • Ring Type Bi-Metallic Cable Lugs (Copper Palm & Aluminium Barrel)
16mm2 to 630mm2
  • Square Type Bi-Metallic Cable Lugs (Copper Palm & Aluminium Barrel)
300mm2 to 400mm2
  • Reverse Ring Type Bi-Metallic Cable Lugs (Aluminium Palm & Copper Barrel) ( Note: This items are made to order items, kindly confirm MOQ before placing the order)
16mm2 to 630mm2
  • Pin/Reducer Type Bi-Metallic Cable Lugs (Copper Palm & Aluminium Barrel) ( Note: This items are made to order items, kindly confirm MOQ before placing the order)
16mm2 to 630mm2

Jainson – Snap On Terminal Ends

TypeRange
  • Snap on Terminal ends Phosphorus Bronze..
1.0-6mm2
  • Snap on Terminal of Phosphorus Bronze. (Insulated with Metal Reinforcement)
1.0-6mm2

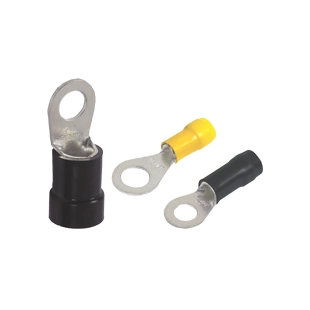

Jainson – Ring Tongue Type Terminal Ends

These are manufactured by using progressive tools. They are manufactured from high conductivity copper & are electro-tinned for corrosion-resistance. Ring tongue type terminal ends are available in different size, to serve the different jointing techniques such as crimping & soldering.

TypeRange
  • Crimping Type Ring Tongue Terminal Ends
0.75-250mm2
  • Crimping Type Ring Tongue Terminal Ends(lnsulated)
0.75-70mm2
  • Crimping Type Ring Tongue Terminal Ends (Insulated with Metal Reinforcement)
1.5-16mm2
  • Open Close Type Soldering Cable Sockets
1.5-625mm2
  • Crimping Type Copper Ring Tongue “U” Cut Terminal Ends
1.5-16mm2
  • Crimping Type Copper Ring Tongue “U” Cut Terminal Ends (Insulated)
1.5-16mm2
  • Crimping Type Copper Ring Tongue “U” Cut Terminal Ends (Insulated With Metal Reinforcement)
1.5-16mm2

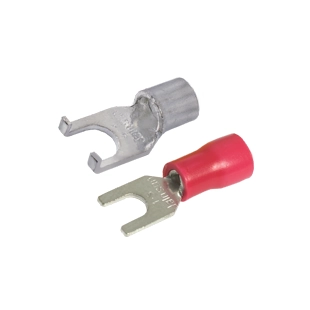

Jainson – Fork Type Terminal Ends

This type of terminal ends are mainly used for termination of control cable, flexible, cords, contractors meters of control panel cubicles, according to the requirement. They are crimping & are made of High Conductivity Copper.

TypeRange
  • Crimping Type Fork Type Terminal Ends
0.75-16mm2
  • Crimping Type Fork Type Terminal Ends(lnsulated)
0.75-16mm2
  • Crimping Type Fork Type Terminal Ends (Insulated with Metal Reinforcement)
0.75-16mm2
  • Crimping Type Copper Fork Hook Type Terminal Ends
0.75-6mm2
  • Crimping Type Copper Fork Hook Type Terminal Ends (Insulated)
0.75-6mm2
  • Crimping Type Fork Hook Type Terminal Ends (Insulated with Metal Reinforcement)
0.75-6mm2

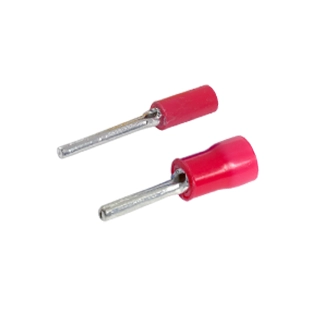

Jainson – Pin Type TerminaI Ends

This type of terminal ends come in two type Round & flat. They are mainly used for control cables, flexible cord, for smaller size of cable, Terminal station Etc. Pin Type Terminal Ends are generally available for crimping type connection which are made out of High Conductivity Copper.

TypeRange
  • Crimping Type Copper Pin Type Terminal Ends
0.75-95mm2
  • Crimping Type Copper Pin Type Terminal Ends(lnsulated)
0.75-16mm2
  • Crimping Type Copper Pin Type Terminal Ends (Insulated with Metal Reinforcement)
0.75-16mm2
  • Crimping Type Insulated Ferrule
0.75-95mm2
  • Twin Cord End Insulated Terminals
0.75-16mm2
