Orbit – Fixed Wiring Cables

Orbit – Heat Resistant – Flame Retardant (HRFR)

Orbit HRFR Cables: Superior Heat Resistant Flame Retardant Solutions. Orbit, a leading innovator in cable technology, presents its Heat Resistant Flame Retardant (HRFR) cables, designed to set new standards in safety, reliability, and performance. With a focus on mitigating heat generation and preventing fire propagation, Orbit’s HRFR cables offer exceptional qualities to meet your most demanding electrical needs.

Key Features

  • Heat Dissipation and Flame Retardation: The HRFR layer serves as the primary defence against heat build-up caused by current flow. This layer also exhibits effective flame retardant properties to enhance safety.
  • Triple-Layer Flame Retardancy: The middle and top Flame Retardant (FR) layers work synergistically to impede flame propagation in the event of a fire, bolstering fire safety measures.
  • Temperature Resistance: The HRFR PVC layer is engineered to endure temperature elevations of up to 105°C, which may arise from factors such as high power consumption, voltage fluctuations, or electrical spikes.

Technical Data

  • Nominal Voltage (U0/U): 600/1100 V
  • Max Operating Temperature: 85°C
  • Temperature Range: -15°C to + 85°C
  • Approvals: IS 8130:2013
  • Flammability: IEC 60332 – 1:2004
  • Minimum Bending Radius: 8D
  • Oxygen Index: Minimum 29 %
  • Temperature Index: Minimum 250°C

Single Core Unsheathed PVC Insulation Copper Conductor Cables (Confirming to IS:694-2010)

Colour: Red, Yellow, Blue, Black & Green

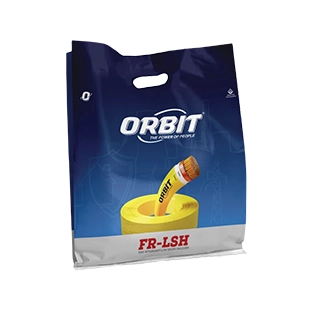

Orbit – Flame Retardant – Low Smoke (FR-LSH)

Orbit FRLS Cables: Advanced Flame Retardant Low Smoke Solutions. Orbit presents its Flame Retardant Low Smoke (FRLSH) cables, redefining safety and performance standards. With a strong emphasis on flame retardancy and reduced smoke emission, Orbit’s FRLS cables offer a comprehensive solution for applications demanding heightened fire safety.

Key Features

  • Enhanced Flame Retardancy and Low Smoke: Orbit’s FRLS cables feature an insulation that blends flame retardant and low smoke characteristics. These cables emit significantly less smoke during combustion, ensuring better visibility for safe evacuation and efficient firefighting operations.Reduced halogen acid and toxic gas emissions contribute to a safer environment during fire incidents.
  • Versatile Applications: Designed for a wide spectrum of scenarios, including fire and explosion-prone areas, chemical factories, densely wired spaces, public buildings, educational institutions, healthcare facilities, commercial complexes, and more.Ideal for modern residences with multiple high-power electrical appliances, high-rise residential buildings,commercial complexes, public spaces, schools, and hospitals.

Technical Data

  • Nominal Voltage (U0/U): 600/1100 V
  • Max Operating Temperature: 70°C
  • Temperature Range: 15°C to + 70°C
  • Approvals: IS 8130:2013
  • Flammability: IEC 60332 – 1:2004
  • Minimum Bending Radius: 8D
  • Oxygen Index: Minimum 29 %
  • Temperature Index: Minimum 250°C
  • Smoke Density Rating: Maximum 60%
  • Acid Gas Generation ( HCL % ): Maximum 20%

Single Core Unsheathed PVC Insulation Copper Conductor Cables (Confirming to IS:694-2010)

Colour: Red, Yellow, Blue, Black & Green

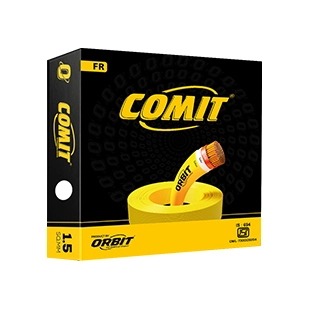

Orbit – Comit

Comit Cables: Elevate Your Wiring Solutions. Comit Cables present Single Core Flexible Cables, meticulously crafted with Annealed Plain Copper and insulated with Flame Retardant PVC. These cables are designed to redefine the wiring experience across residential and commercial infrastructure projects.

Key Features

  • Industry Standard Compliance: Comit Cables are fully compliant with REACH, RoHS, and CE regulations, ensuring environmentally conscious and safe solutions.
  • Anti-Rodent & Anti-Termite: These cables are fortified with anti-rodent and anti-termite properties, guaranteeing durability and protection against pests.
  • Pure Electrolytic Copper: Comit Cables boast 100% electrolytic copper composition, ensuring superior electrical conductivity for efficient power transmission.
  • High Conductivity: With conductivity exceeding 101%, these cables minimize power loss and maximize energy efficiency.
  • Flame Retardant: The Flame Retardant PVC insulation offers an additional layer of safety by preventing the propagation of flames, enhancing fire safety measures.

Technical Data

  • Nominal Voltage (U0/U): 600/1100 V
  • Max Operating Temperature: 70°C
  • Temperature Range: -15°C to + 70°C
  • Approvals: IS 8130:2013
  • Flammability: IEC 60332 – 1:2004
  • Minimum Bending Radius: 8D
  • Insulation Conformity: IS 5831, Type D FR 70°C

Single Core Unsheathed PVC Insulation Copper Conductor Cables (Confirming to IS:694-2010 )

Colour: Red, Yellow, Blue, Black & Green

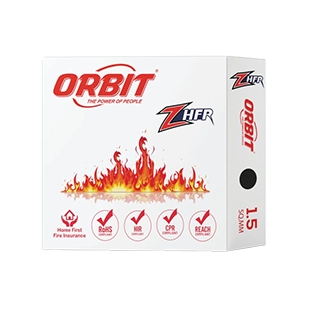

Orbit – Zero Halogen Flame Retardant (ZHFR)

Orbit ZHFR Cables: Uncompromised Safety with Zero Halogen Flame Retardant Technology. Orbit introduces its Zero Halogen Flame Retardant (ZHFR) cables, designed to elevate safety standards and redefine reliability. Employing the finest imported ZHFR insulation, Orbit’s ZHFR cables promise an emission-free performance in the face of fire, ensuring the utmost safety for various environments.

Key Features

  • Zero Halogen Flame Retardant Insulation: Crafted with premium-grade imported ZHFR insulation, Orbit’s cables ensure absolute zero emission of harmful halogen gases and smoke during fire incidents. This revolutionary feature drastically enhances safety, making these cables an ideal choice for critical settings like residential and commercial complexes, metro railways, chemical and nuclear plants, high-security installations, and defence facilities
  • Unrivalled Safety Assurance: Orbit ZHFR cables offer a level of safety that transcends traditional standards, as they prevent the release of toxic gases and smoke, contributing to the preservation of human life and property

Technical Data

  • Nominal Voltage (U0/U): 600/1100 V
  • Max Operating Temperature: 105°C
  • Temperature Range: -15°C to + 105°C
  • Approvals: IS 8130:2013
  • Flammability: IEC 60332 – 1:2004
  • Minimum Bending Radius: 8D
  • Oxygen Index: Minimum 29%
  • Temperature Index: Minimum 250°C

Single Core Insulated Unsheathed 1100 Volts, Copper Conductor Cables (As per IS: 694 – 2010)

Colour: Red, Yellow, Blue, Black & Green

Orbit – Flame Retardant, Low Smoke Low Halogen (FRLS-H)

Flame Retardant, Low Smoke Low Halogen (FRLS-H) wires are designed for use in fire hazard areas where such hazardous situations exist. ORBIT Cables provide reliable industrial performance, with a voltage grade of up to 1100V and conductor area of 1.00 to 6.00 square millimeters. This 180m Coil Project Pack is available in five colors and is perfect for large-scale projects. Its FRLS-H construction ensures an elevated safety rating.

Key Features

  • REACH, RoHS and CE Compliant
  • Anti-Rodent & Anti-Termite
  • 100% Electrolytic Copper
  • More than 101% Conductivity
  • Flame Retardant

Technical Data

  • Nominal Voltage (U0/U): 600/1100 V
  • Pack Type: Project pack
  • Coil: 180m Coil
  • Cable Type: Single Core Unsheathed
  • Type: FRLS-H Industrial Cables

Single Core Industrial Cables as per IS 694:2010 PVC Insulated and Unsheathed 1100 Voltage

Colour: Red, Yellow, Blue, Black & Green
