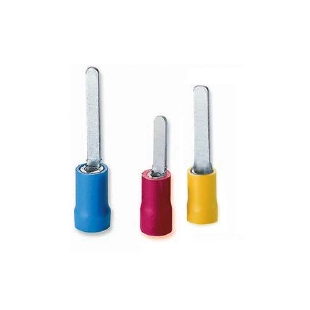

Ashwin – Insulated Blade Terminal

Maximum Electric Current

MAXIMUM ELECTRICAL RATING:75.C 600 VOLTS MAX.
INSULATION MATERIAL:VINYL;
INSULATION COLOR: 0.5mm² YELLOW, 0.5 – 1.5mm² RED, 1.5 – 2.5mm² BLUE, 4 – 6mm² YELLOW
TERMINAL MATERIAL: COPPER

We can supply ‘Blade Terminals’ with Nylon and Polycarbonate insulation. To order, please suffix ‘NY’ for Nylon and ‘PC’ for Polycarbonate insulation.

eg. DBV- 1 – 10 NY for Nylon insulation
eg. DBV- 1 – 10 PC for Polycarbonate insulation

DOUBLE CRIMP = PSD Series / With extra copper sleeves.

Ashwin – Insulated Ring Terminal

Maximum Electric Current

MAXIMUM EXECTRICAL RATING: 75^oC 600 VOLTS MAX.
INSULATION MATERIAL: VINYL;
INSULATION COLOR: 1.5mm² RED, 2.5mm² BLUE, 4-6mm² YELLOW
TERMINAL MATERIAL: COPPER

We can also supply Nylon Insulated Ring Terminals and Polycarbonate Insulated Ring Terminals FOR NYLON Please suffix NY or NYD(Double Crimp/PSD series with extra copper sleeve) FOR POLYCARBONATE Please suffix PC or PCD(Double Crimp/PSD series with extra copper sleeve)

e.g: ART-1-5 NY = NYLON INSULATION
e.g: ART-1-5 PC = POLYCARBONATE INSULATION

DOUBLE CRIMP = PSD Series / With extra copper sleeves.

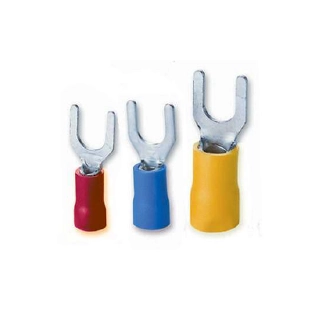

Ashwin – Insulated Fork Terminal

Maximum Electric Current

MAXIMUM EXECTRICAL RATING: 75^oC 600 VOLTS MAX.
INSULATION MATERIAL: VINYL;
INSULATION COLOR: 2.5-4mm² BLACK, 1.5mm² RED, 2.5mm² BLIJE, 4-6mm² YELLOW
TERMINAL MATERIAL: COPPER

We can supply Fork Terminals’ with Nylon and Polycarbonate insulation. To order, please suffix ‘NY’ for Nylon and ‘PC’ for Polycarbonate insulation.

e.g: AFT- I – 3.7 NY for Nybn insulation
e.g:AFT- 1 – 3.7 PC for Polycarbonate insulation

DOUBLE CRIMP = PSD Series / With extra copper sleeves.

Ashwin – Insulated Pin Terminal

Maximum Electric Current

MAXIMUM EXECTRICAL RATING: 75^oC 600 VOLTS MAX.
INSULATION MATERIAL: VINYL;
INSULATION COLOR: 25-22 A.W.G.: YELLOW, 22-16 A.W.G: RED, 16-14 A.W.G.: BLUE, 12-10 A.W.G.: YELLOW
TERMINAL MATERIAL: COPPER

We can supply ‘PIN Terminals’ with Nylon and Polycarbonate insulation. To, order, please suffix ‘NY’ for Nylon and ‘PC’ for Polycarbonate insulation.

eg. P TV • 1 – 10NY for Nylon insulation
eg. P TV • 1 – 10PC for Polycarbonate insulation

DOUBLE CRIMP = PSD Series / With extra copper sleeves.

Ashwin – Insulated Butt Connector

Maximum Electric Current

MAXIMUM EXECTRICAL RATING: 75^oC 600 VOLTS MAX.
INSULATION MATERIAL: VINYL( Also available in Nylon insulation);
INSULATION COLOR: 22-16A.W.G:(1.5mm²)RED 16-14: (2.5mm²)BLUE, 12-10:
(6mm²)YELLOW
TERMINAL MATERIAL: COPPER

Ashwin – Insulated Male Connector

Maximum Electric Current

MAXIMUM EXECTRICAL RATING: 75^oC 600 VOLTS MAX.
INSULATION MATERIAL: VINYL
TERMINAL MATERIAL: BRASS
INSULATION COLOR: 22-18 A.W.G:RED, 16-14 A.W.G.:BLUE, 12-10A.W.G..YELLOW
DOUBLE CRIMP: WITH COPPER SLEEVE ON BARREL
TERMINAL BARREL ID: 22-16A.W.G.:C=1.7cm, 16-14A.W.G.:C=2.3cm, 12-10A.W.G.:C=3.4cm.

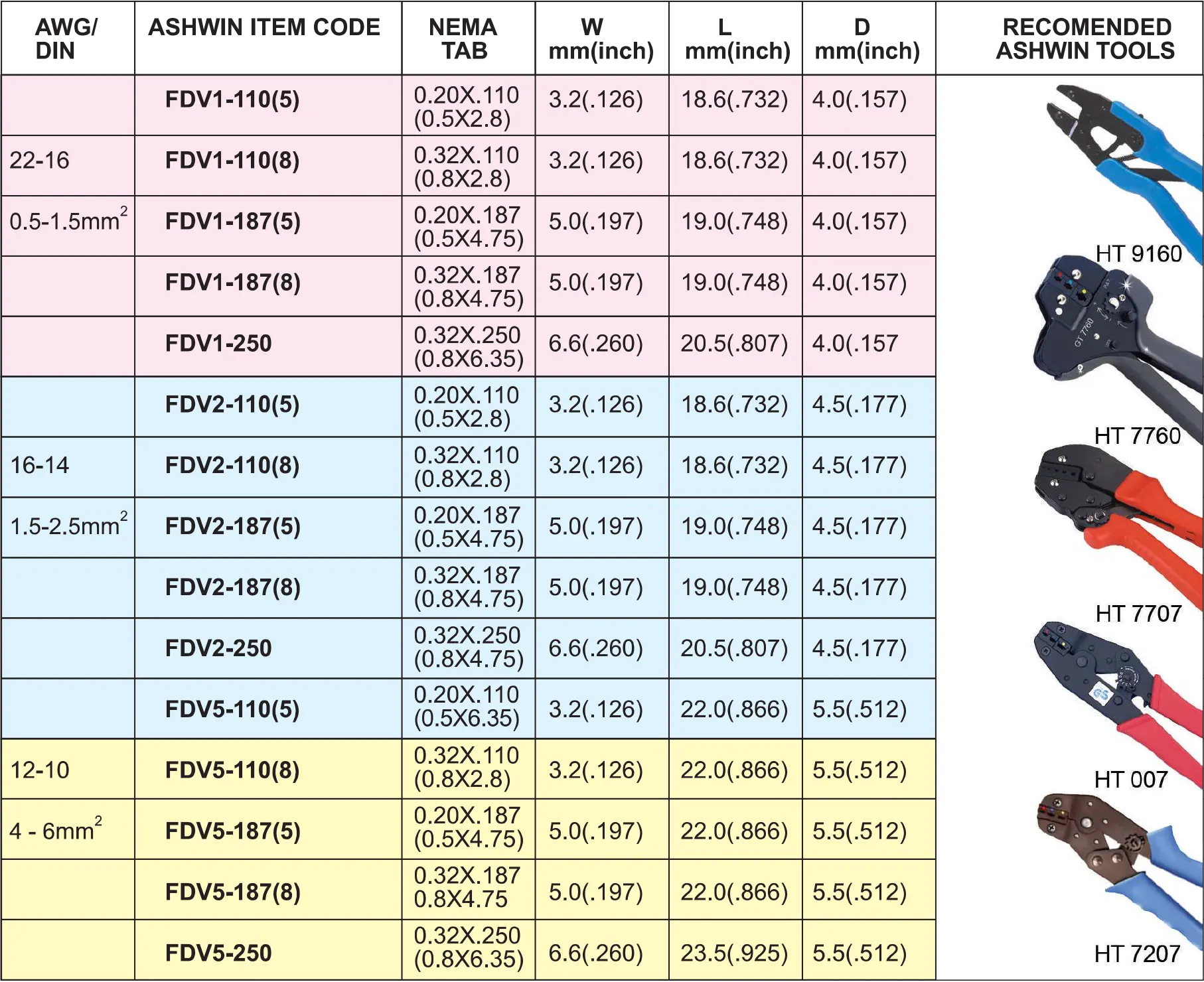

Ashwin – Vinyl-insulated Female Disconnectors

Maximum Electric Current

MAXIMUM EXECTRICAL RATING: 75^oC 300 VOLTS MAX.
INSULATION MATERIAL: VINYL
TERMINAL MATERIAL: BRASS
INSULATION COLOR: 22-15 A.W.G: RED, 16-14 A.W.G:BLUE, 12-10 A.W.G. •YELLOW
TERMINAL BARREL ID: 22-16 A.W.G.: C=1.7mm. 16-14 A.W.G.: C=2.3mm. 12-10 A.W.G.: C=3.4mm.

Maximum Electric Current

MAXIMUM ELECTRICAL RATING: 75^oC 300 V MAX.(0.5mm²), 600V(1.5mm²-6.0mm²)
INSULATION MATERIAL: VINYL 26-22 : YELLOW (0.5mm²), 22-16: RED (1.5mm²)
INSULATION COLOR: 16-14: BLUE (2.5mm²) , 12-10 :YELLOW (6mm²)
TERMINAL MATERIAL: BRASS
DOUBLE CRIMP: WITH COPPER SLEEVE ON BARREL

Ashwin – Vinyl-insulated Double Crimp Bullet Disconnectors

Maximum Electric Current

MAXIMUM EXECTRICAL RATING: 75^oC 600 VOLTS MAX.
INSULATION MATERIAL: VINYL
TERMINAL MATERIAL: BRASS
INSULATION COLOR: 22-16A.W.G,: (1.5mm²) RED 16-14: (2.5mm²) BLUE, 12-10(6mm²) YELLOVI
DOUBLE CRIMP: WITH COPPER SLEEVE ON BARREL
TERMINAL BARREL ID: 22-16A.W.G.:C=1.7cm, 16-14A.W.G.:C=2.3cm, 12-10A.W.G.:C=3.4cm.

Ashwin – Closed End connector

Maximum Electric Current

MAXIMUM ELECTRICAL RATING: 105^oC 300 VOLTS MAX.
CE & PB TYPE INSIDE SLEEVE IS COPPER TUBE.
CEF TYPE INSIDE SLEEVE IS STEEL DRAWN.

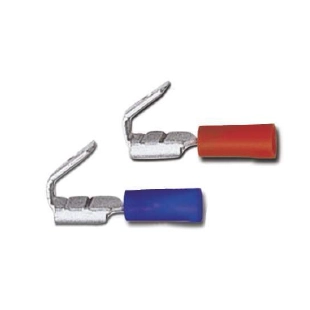

Ashwin – Vinyl-insulated Double Crimp Piggy Back Disconnectors

Maximum Electric Current

MAXIMUM ELECTRICAL RATING: 75oC 600 VOLTS MAX.
INSULATION MATERIAL:VINYL
TERMINAL MATERIAL:BRASS
INSULATION COLOR: 22-16 A.W.G: RED, 16-14 A.W.G: BLUE, 12-10A.W.G: YELLOW
TERMINAL BARREL ID: 22-16A.W.G.:C=1.7mm. 16-14A.W.G,.:C=2.3mm, 12-10A.W.G:C=3.4mm
DOUBLE CRIMP:WITH COPPER SLEEVE ON BARREL

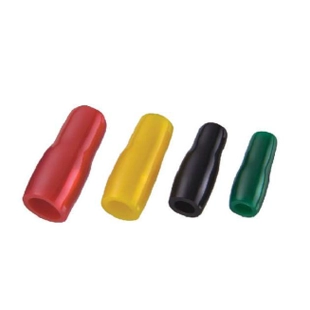

Ashwin – Vinyl Wire End Cap

MATERIAL: VINYL
STANDARD COLOR: RED, BLUE, YELLOW, WHITE, BLACK, GREEN

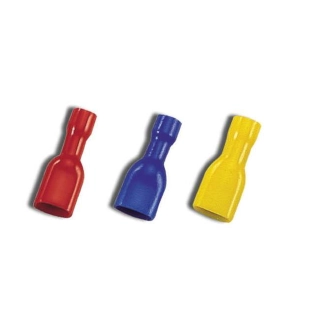

Ashwin – Vinyl-fully Insulated Double Crimp Female Disconnectors

Maximum Electric Current

MAXIMUM ELECTRICAL RATING: 75oC 600 VOLTS MAX.
INSULATION MATERIAL: VINYL
TERMINAL MATERIAL: BRASS
INSULATION COLOR: 22-16A.W.G.: RED 16-14: (2.5mm2)BLUE, 12-10 :(6mm2)YELLOW
DOUBLE CRIMP: WITH COPPER SLEEVE ON BARREL
TERMINAL BARREL ID: 22-16A.W.G.: C=1.7cm. 16-14A.W.G.: C=2.3cm. 12-10A.W.G.:C=3.4cm.

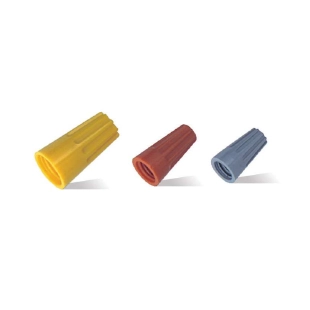

Ashwin – Screw-on Wire Cap Connectors

TEMPERATURE RATING: 105 C
ELECTRICAL RATING: 300 VOLTS
APPROVED: UL CSA

Ashwin – Non-insulated Flag Female Disconnectors (Normal Type)

Maximum Electric Current

TERMINAL MATERIAL: BRASS

Ashwin – Nylon-fully Insulated Female & Male Disconnectors

Maximum Electric Current

MAXIMUM ELECTRICAL RATING: 105°C 300 VOLTS MAX.
INSULATION MATERIAL:NYLON
TERMINAL MATE RIAL:BRASS
INSULATION COLOR: 22-16 A.W.G: RED, 16-14 A.W.G.: BLUE, 12-10A.W.G.: YELLOW
TERMINAL BARREL ID: 22-16A.W.G.:C=1.7mm. 16-14A.W.G.:C=2.3mm. 12-10A.W.G:C=3.4mm

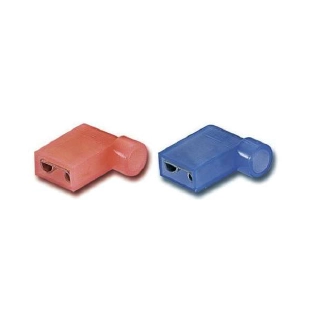

Ashwin – Flag Type Female Disconnector

Maximum Electric Current

MAXIMUM ELECTRICAL RATING: 105°C 300 VOLTS MAX.
INSULATION MATERIAL: NYLON
INSULATION COLOR: 22-18 A.W.G: RED, 16-14 A.W.G.: BLUE, 12-10A.W.G.: YELLOW
TERMINAL MATERIAL: BRASS

Ashwin – Vinyl-insulated Changing Down Butt Splice Connectors

Maximum Electric Current

MAXIMUM ELECTRICAL RATING: 75°C 600 VOLTS MAX.
CONNECTOR MATERIAL: COPPER TUBULAR
INSULATION MATERIAL: VINYL
INSULATION COLOR: 22-16 A.W.G.: RED, 16-14 A.W.G.: BLUE, 12-10 A.W.G.: YELLOW 8 A.W.G.: RED, 14A.W.G.: BLUE
